• SS Series Slim Seal Volume Control Damper

SS Series Slim Seal Volume Control Damper

SS Series Slim Seal Volume Control damper

The SS Series Volume Control and Low Leakage Damper is designed for installation into ducted air conditioning and ventilation systems where air balancing and low closed blade leakage characteristics are called for in standard low to medium pressure and velocity systems.

For further technical information please see below.

Get a quote

Find out more about this product:

Product application

The SS Series Volume Control and Low Leakage Damper is designed for installation into air conditioning and ventilation systems where air balancing and low closed blade leakage characteristics are required in standard low to medium pressure and velocity systems.

SS Series Slim Seal Volume Control Damper

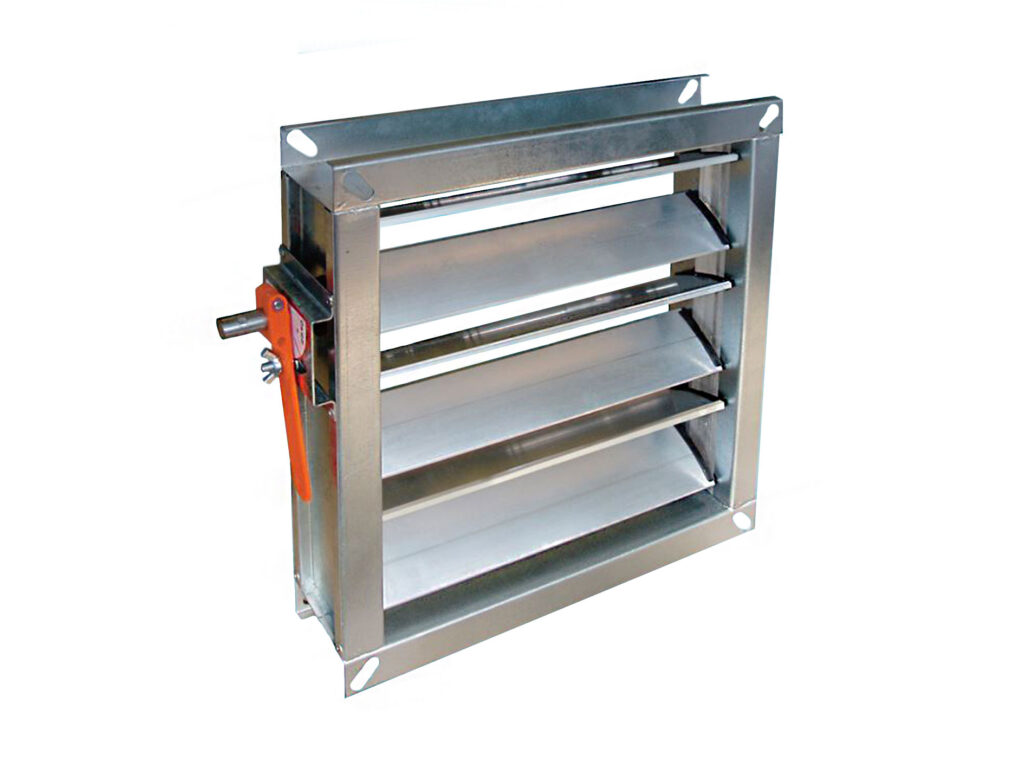

The SS Series Control and Low Leakage Damper is designed for duct installations to balance and regulate airflow within HVAC systems. Standard case construction is a flanged galvanised mild steel with 50mm wide extruded aluminium blade incorporating TPE blade edge seals with out of airflow linkage.

Blades are opposed blade operation incorporating blade end caps and are optionally available in stainless steel case grades 316 and 430

Sizes from 100mm to 1000mm rectangular and 100mm to 1000mm dia single section with multiple configurations available.

The robust 50mm wide roll formed and clinched blade design ensures smooth operation and low noise with steel linkage located out of the airflow and are available in galvanised or stainless steel (430 or 316) to suit application.

3 control options are available, Hand control, extended spindle (motorisation by others) or motorised (state actuator voltage and model when ordering).

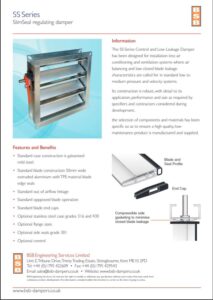

Download these resources
