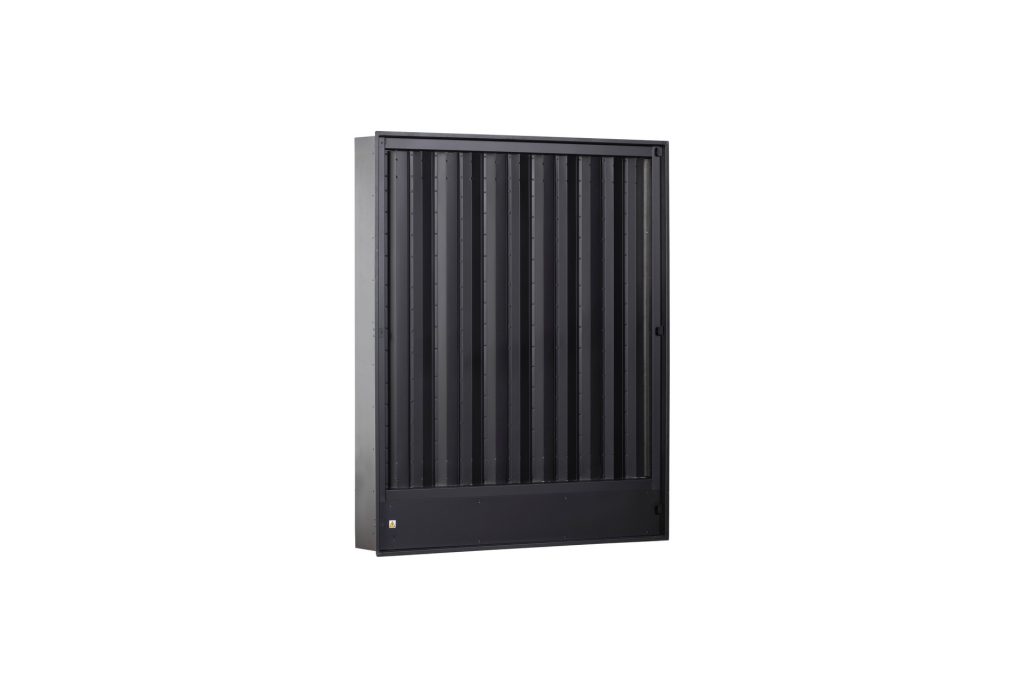

LD Series Lobby Mechanical Ventilation Smoke Damper
- Category:
- Smoke Control
LD Series Smoke Control Dampers are designed for fan powered extract systems for smoke evacuation and control within lobbies.
LD Dampers are installed into extract shafts in multi-level buildings, to maintain tenable conditions in the common escape routes in the event of a fire. Suitable for environmental and smoke control extract systems. Available with 24v or 230v actuators to suit control system.
The LD Dampers are ES Classified and suitable for single and multicompartment use, tested to EN 1366-10.
For further technical information see below.
Find out more about this product:
Product application
LD Series Smoke Control Dampers are suitable for mechanical smoke ventilation systems for smoke evacuation and control within lobbies, installed into extract shafts in multi-level buildings, maintaining tenable conditions in common escape routes during a fire.
LD Series Lobby Mechanical Ventilation Smoke Damper
The LD Series Smoke Control dampers are suitable for dryline walls and masonry/concrete shaft constructions and is independently 3rd party tested and certified to the following standards:

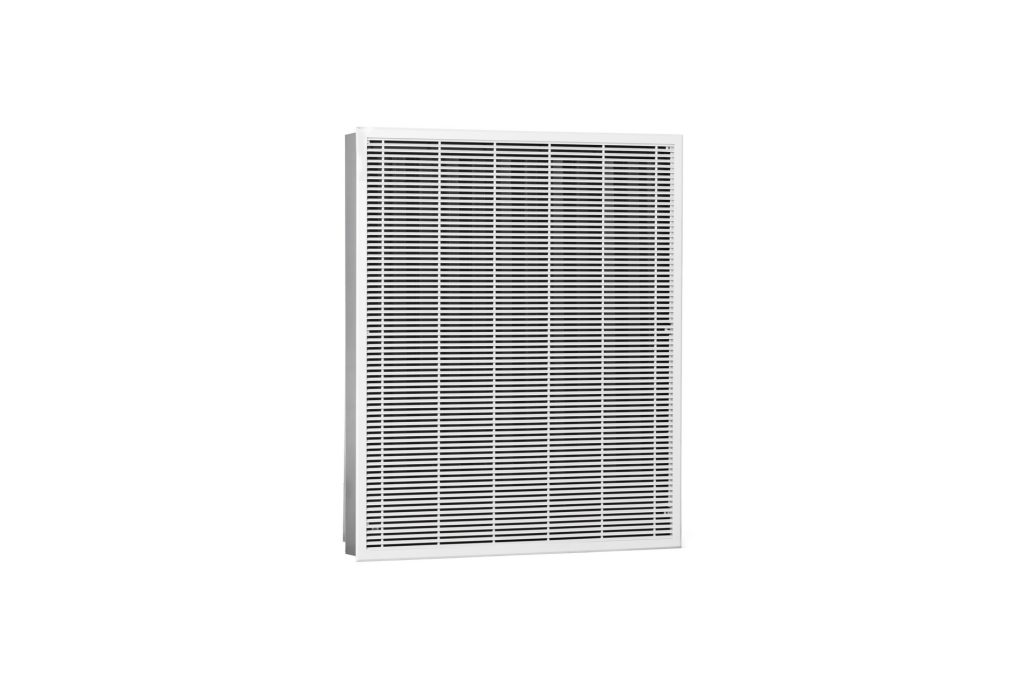

- Easy Fix® fascia grille and damper tested to EN1366-10.
- ES Classified according to EN 13501-4.
- CE marked to EN 12101-8.
- Case leakage – Class C EN 1751.
- Blade leakage – Class 2 EN 1751.
- Single and multicompartment use tested to EN 12101-8.
- Available in sizes from 400mm wide x 600mm high up to 1200mm wide x 1425mm high (aperture size).

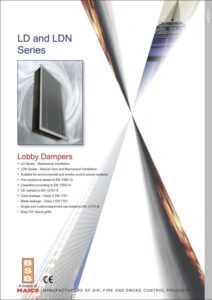

Download these resources
