HD-IB Series Heavy Duty Reduced Leakage Damper

The HD-IB Series heavy duty reduced leakage damper is designed for air conditioning and ventilation systems requiring air control and reduced closed blade leakage performance.

It is ideal for environments in areas where exposure to aggressive air and moisture is a possibility.

For further technical information please see below.

Get a quote

Find out more about this product:

Product application

The HD-IB series Heavy duty reduced leakage damper has been designed for installation within air conditioning and ventilation systems requiring air control and reduced closed blade leakage where exposure to aggressive air and moisture is a possibility.

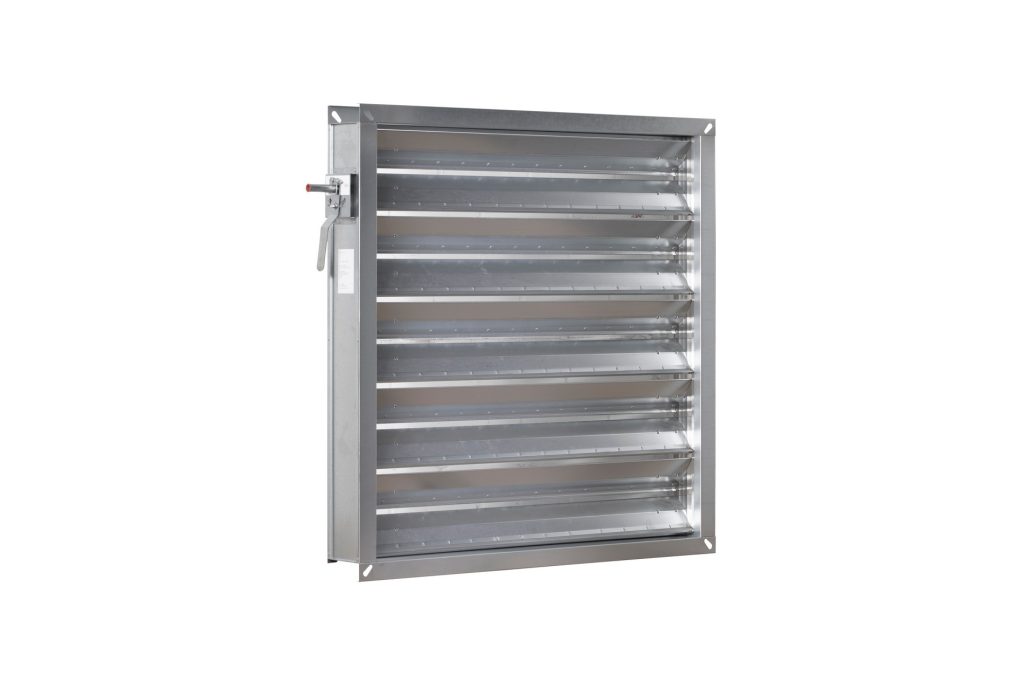

HD-IB Series Heavy Duty Reduced Leakage Damper

The HD-IB series Heavy duty reduced leakage damper is available with square or rectangular flanged or spigoted connections and features a 100mm wide interlocking blade profile complete with peripheral gaskets to inner damper case on all four sides.

  • Blades are available in galvanised or stainless steel (430 or 316)
  • Suitable for velocities up to 20 m/s and duct Pressure to 2000 Pa, conforming to DW144 and Eurovent 2/2 classes A-C.
  • Control is either manual, specified Belimo actuators, or extended spindle control, allowing on-site conversion without special tools.
  • Flanged single section sizes from 100mm x 100mm up to 1000mm x 1000mm with single drive mechanism.
  • Spigoted single section sizes from 100mm x 100mm up to 1000mm x 1000mm case sizes single drive.
  • Circular spigoted single section sizes from 100mm dia up to 1422mm dia one drive.
  • Multiple section spigot square/rectangular dampers available either for site assembly or factory assembled.
