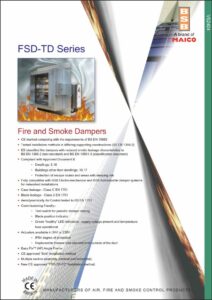

FSD-TD Series Motorised Fire Damper

The FSD-TD Series opposed blade motorised Fire dampers are suitable for use in dryline walls, masonry/concrete walls, floors, cavity barriers and Batt and is independently 3rd party tested and certified to the following standards:

• Fire resistance tested to BS EN 1366-2.
• ES classified to BS EN13501-3 CE marked to BS EN 15650 Closed blade leakage Class 2 to BS EN 1751.
• Fully welded damper casing leakage Class C to BS EN 1751.
• The double skin apposed blade design is held open via the actuator and will spring closed on input signal from damper control system and/or fire alarm input. Normal operating conditions – to a maximum of 1000Pa.
• The damper design enables testing via the thermal fuse test button without the need for specialist tools or access panels. NB: Access panels may be required to comply with DW145 G.3.1.5.
• Available in galvanised or stainless steel construction in rectangular, circular or flat oval spigot configurations. tested horizontal and vertical options, with five frame variations to suit varying applications.
• Available in sizes from 100mm wide x 100mm high up to 1000mm wide x 1000mm high in single section, larger format multiple section configurations available.
