ACP Addressable Damper Control Panel
The ACP Series Addressable Damper Control Systems are designed for the centralised control, testing, and monitoring of connected Fire dampers in HVAC systems.
These panels offer flexibility though programming to control basic or complex cause and effect strategies, making them ideal for life safety systems in larger or more complex applications.
For further technical information please see below.
Find out more about this product:
Product application
The ACP Series Addressable Damper Control Systems are designed for the centralised control, testing, and monitoring of connected Fire dampers in HVAC systems.
These panels offer flexibility though programming to control basic or complex cause and effect strategies, making them ideal for life safety systems in larger or more complex applications.
ACP Addressable Damper Control Panel
The ACP Series Addressable Control Panels are advanced software-driven systems offering control of up to 350 dampers from a single panel.

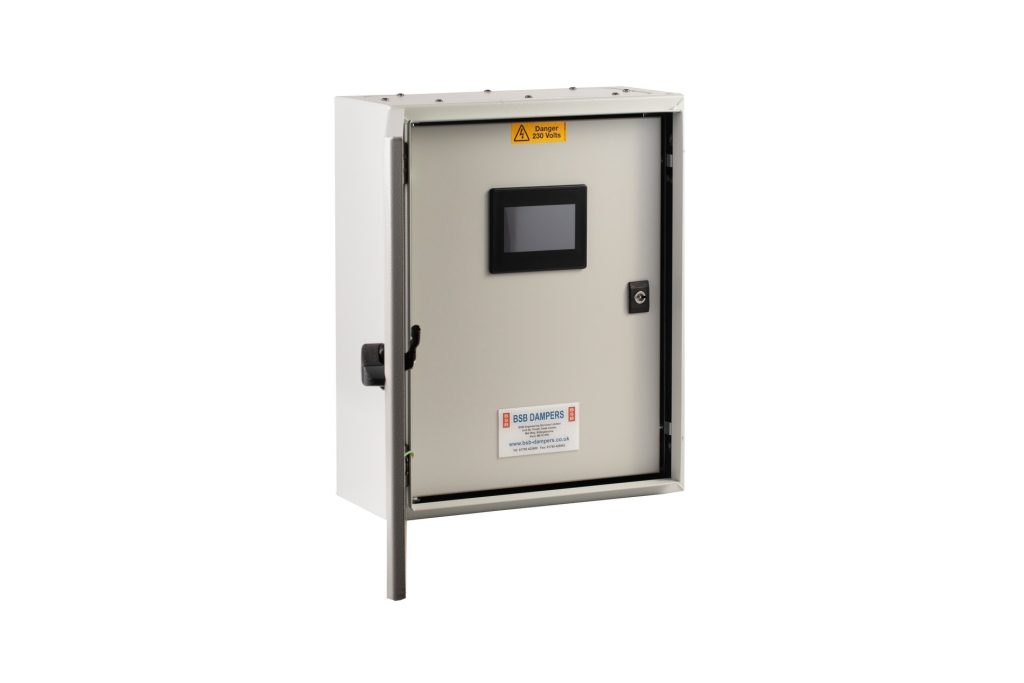

The panels feature a 4.3” colour touch screen LCD display for clear status indication, visual and audible alarm status, and a lockable glass fronted door.
They support 1 to 7 networks per panel, with a maximum of 50 actuators per network. The panels are pre-programmed to suit individual project cause and effect, reducing on-site commissioning time.
Each ACP panel includes programmable volt-free inputs and outputs, enabling integration with fire alarm systems and other control systems. The panels are BMS compatible with Modbus and BACnet protocols.

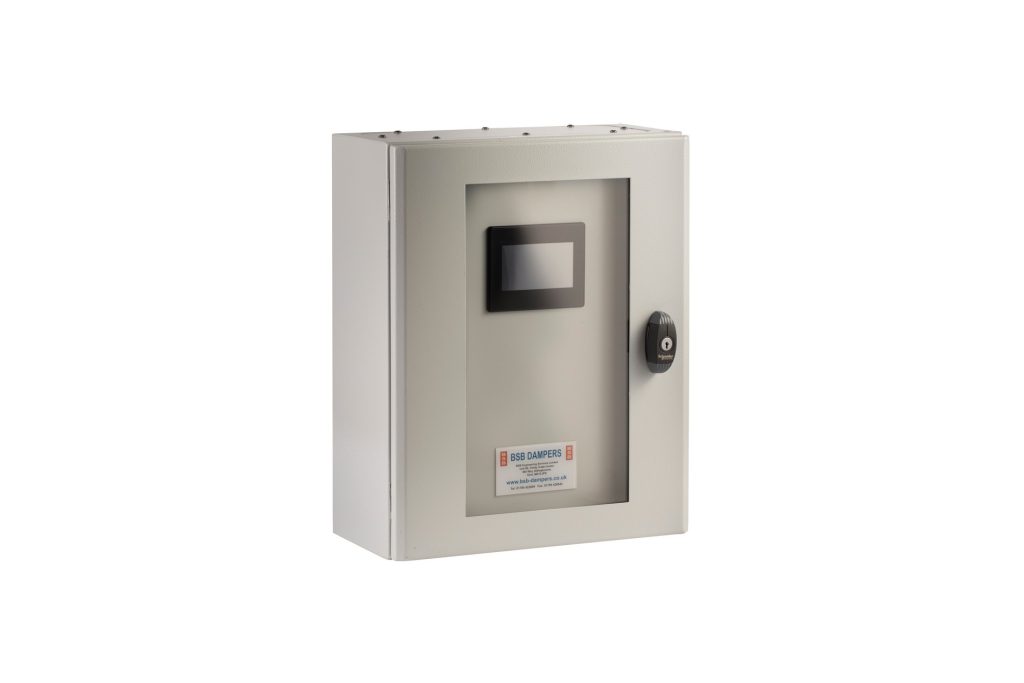

The control panels are housed in a powder-coated mild steel cabinet with an IP rating of IP56 for surface mount installation. #
The standard size ranges from ACP50 to ACP350, with dimensions of 500mm (H) x 400mm (W) x 200mm (D). The panels operate within a climatic range of 0°C to 70°C ambient and 80% RH non-condensing.
The ADM (Addressable Damper Module) is included in this networked system, communicating with each individual damper actuator signalling status to the ACP control panel via the data network.
Each ADM is housed in an ABS multi-glanded junction box with transparent lid for clear visibility of status LEDs and easy installation and integration onto the network. ADM are available to suit 24v or 230v damper actuators
